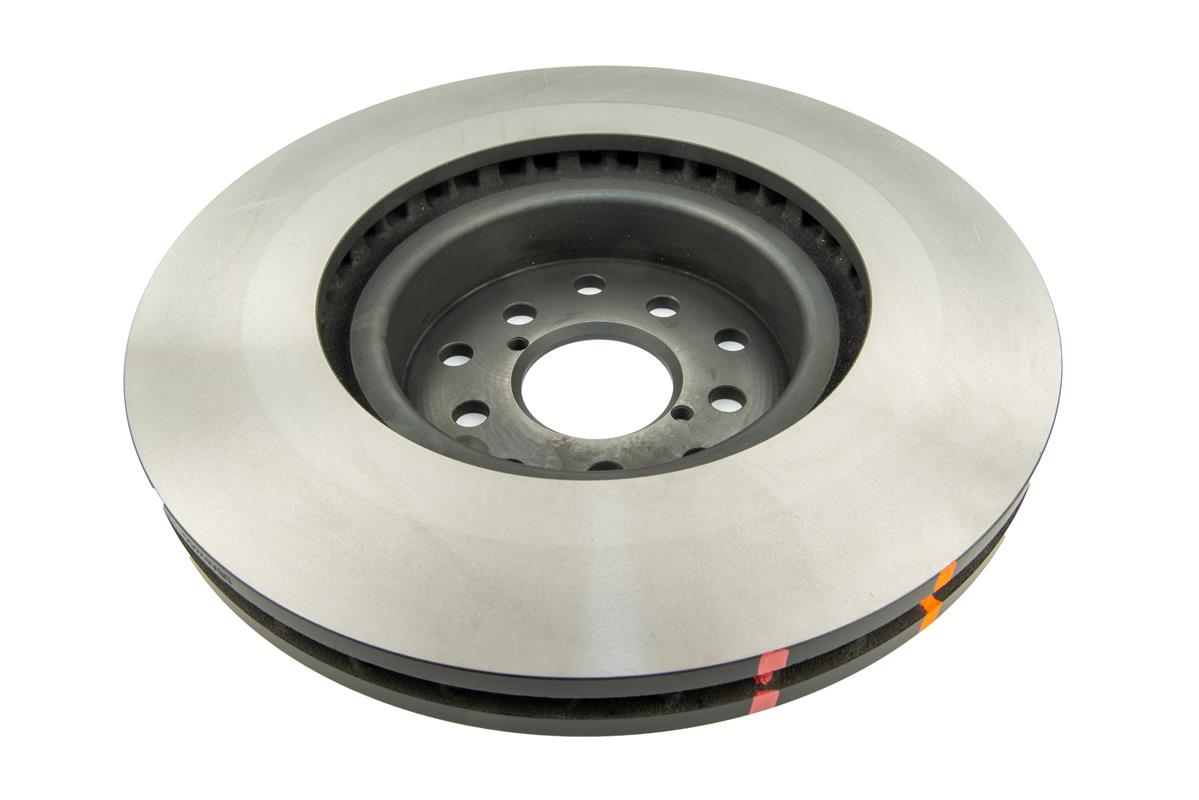

DBA42650-10 - DBA 4000 Series brake disc

Product description

DBA42650-10 4000 Series brake disc with enhanced resistance to thermal loads.

DBA42650-10 belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.

The plain version provides a large friction area and stable operation during intensive road use. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.

Before purchase, confirm that DBA42650-10 matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Diameter [mm]

316

Disc Vent

Kangaroo Paw

Number of Holes

5

Inner Diameter [mm]

58

Minimum Thickness [mm]

28

Thickness [mm]

30

Height [mm]

56.7

Pitch Circle [mm]

100 & 114.3

ECE R90 number

E11*90R02/06*59752*00
