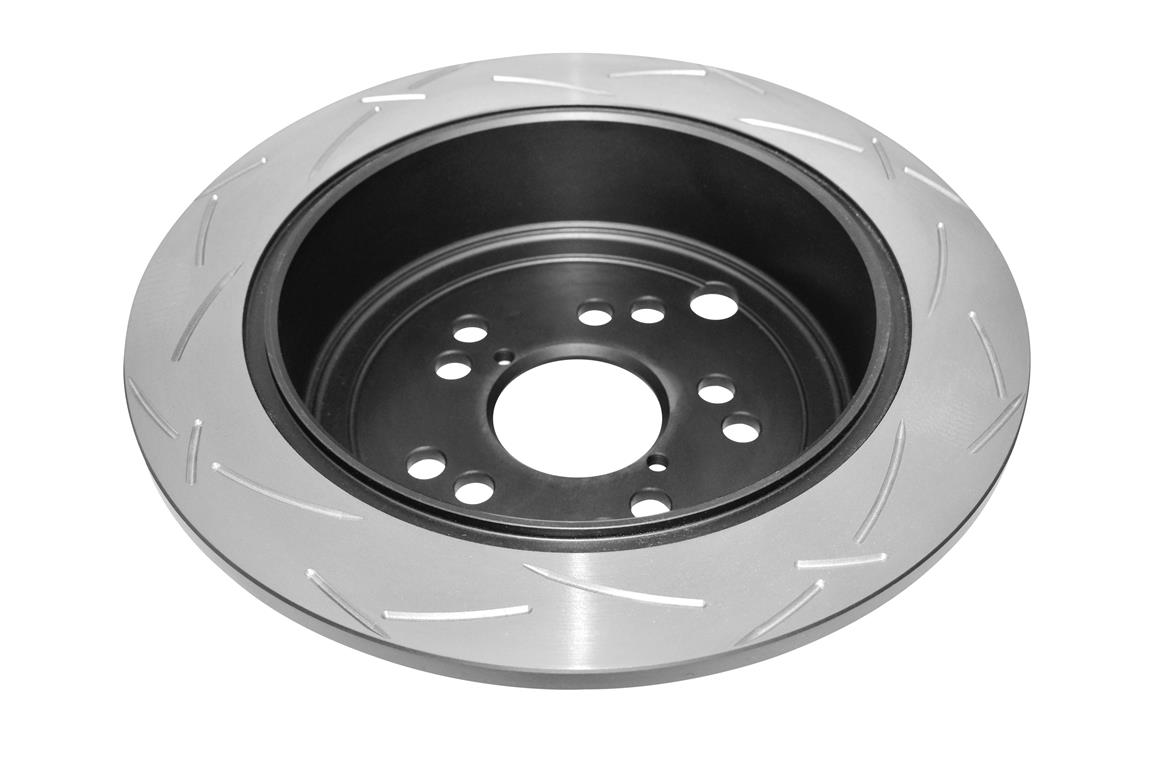

DBA42659S-10 - DBA 4000 Series brake disc

Product description

DBA42659S-10 4000 Series T3 brake disc for intensive road and performance driving.

DBA42659S-10 belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.

The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.

Before purchase, confirm that DBA42659S-10 matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Diameter [mm]

286

Disc Vent

Solid

Number of Holes

10

Inner Diameter [mm]

58

Minimum Thickness [mm]

8,5

Thickness [mm]

10

Height [mm]

63.5

Pitch Circle [mm]

100 & 114.3

Stage

Stage 4

Applications
