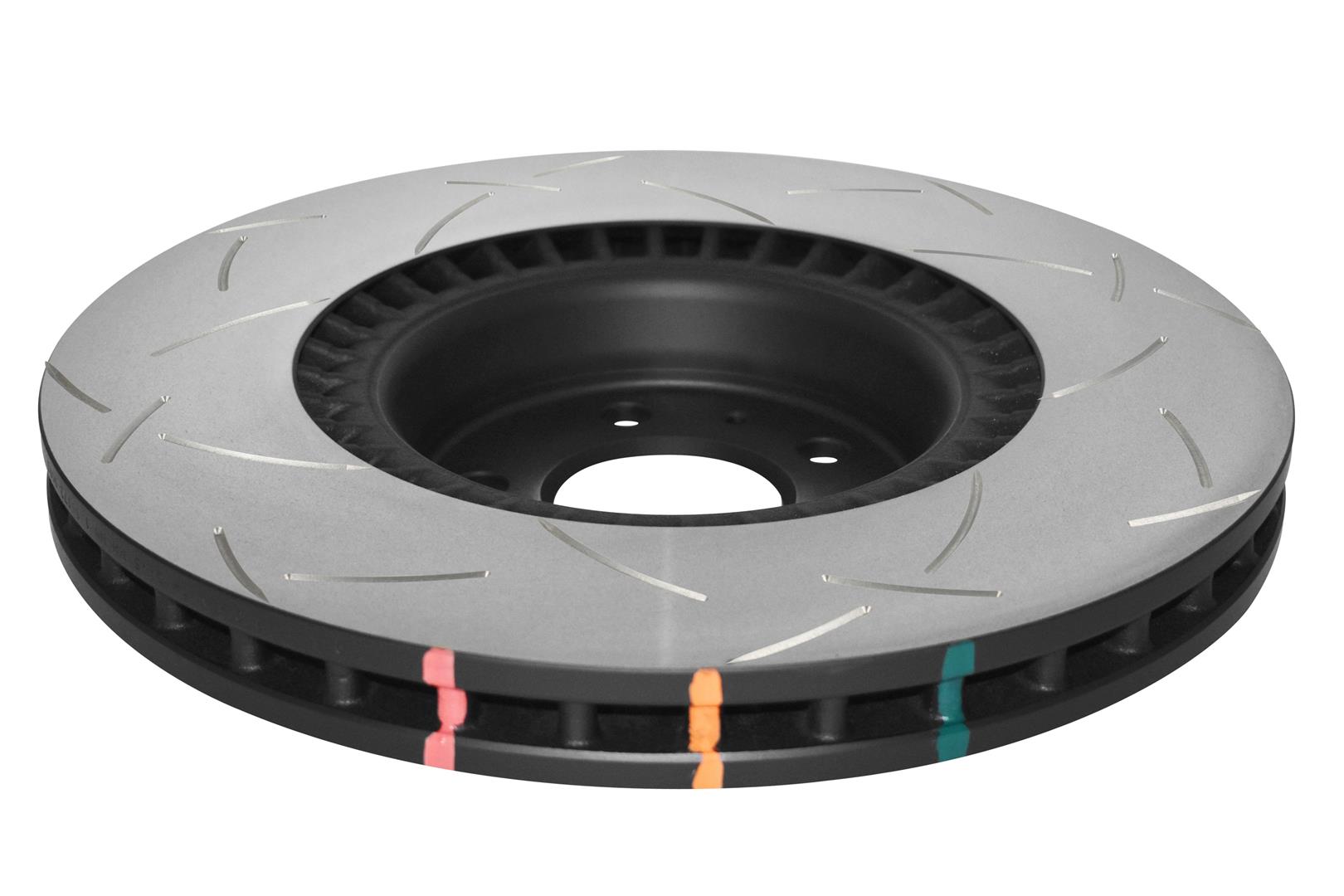

DBA42848S - DBA 4000 Series brake disc

Product description

DBA42848S 4000 Series T3 brake disc for intensive road and performance driving.

DBA42848S belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.

The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.

Before purchase, confirm that DBA42848S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Diameter [mm]

356

Disc Vent

Kangaroo Paw

Number of Holes

5

Inner Diameter [mm]

68

Minimum Thickness [mm]

31,5

Thickness [mm]

34

Height [mm]

52.1

Pitch Circle [mm]

112

Stage

Stage 4

ECE R90 number

E11*90R02/06*60535*00
