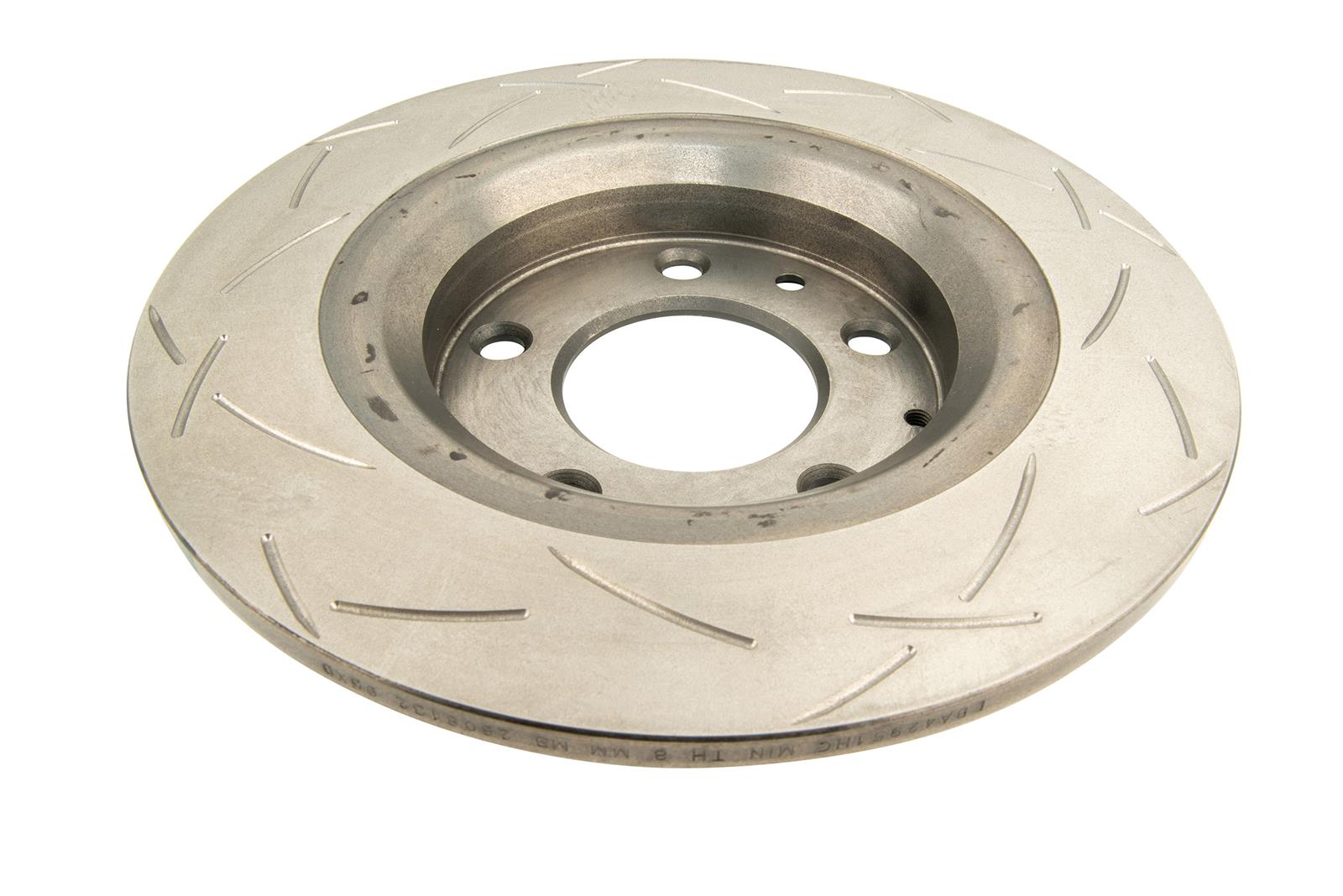

DBA42951S - DBA 4000 Series brake disc

Product description

DBA42951S 4000 Series T3 brake disc for intensive road and performance driving.

DBA42951S belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.

The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.

Before purchase, confirm that DBA42951S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Diameter [mm]

280

Disc Vent

Solid

Number of Holes

5

Inner Diameter [mm]

72

Minimum Thickness [mm]

8

Thickness [mm]

10

Height [mm]

40

Pitch Circle [mm]

114.3

Stage

Stage 4

ECE R90 number

E11 90R-02C01704/72742

Applications
