DBADBA 4000 Series brake discsDBA42959S

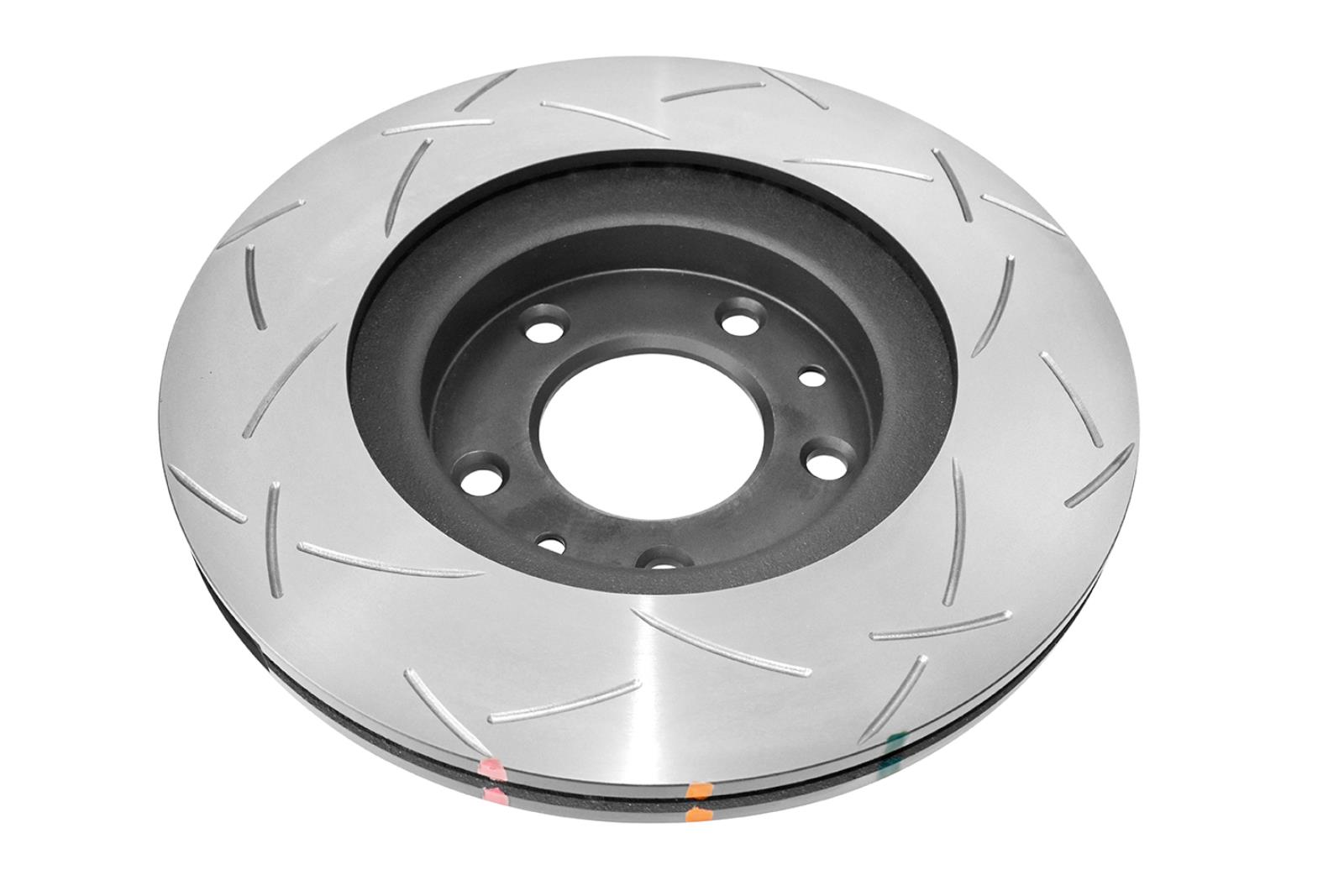

DBA42959S - DBA 4000 Series brake disc
Gross price
895,41 zł
Product available. Dispatch within 24 hours.
Product description
DBA42959S 4000 Series T3 brake disc for intensive road and performance driving.
DBA42959S belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.
The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.
Before purchase, confirm that DBA42959S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 290
- Disc Vent
- Kangaroo Paw
- Number of Holes
- 5
- Inner Diameter [mm]
- 72
- Minimum Thickness [mm]
- 20
- Thickness [mm]
- 22
- Height [mm]
- 45.1
- Pitch Circle [mm]
- 114.3
- Stage
- Stage 4
- ECE R90 number
- E11 90R-02C01704/72741
Applications
- Front - MAZDA/MX5 (Mk3) (NC)/1.8 (2005-2015) Brake Pads: DB2063, Brake Caliper: Advics
- Front - MAZDA/MX5 (Mk3) (NC)/2.0 (2005-2015) Brake Pads: DB2063, Brake Caliper: Advics
