DBADBA 4000 Series brake discsDBA42968S
DBA42968S - DBA 4000 Series brake disc
Gross price
1 052,51 zł
Product available. Dispatch within 24 hours.
Product description

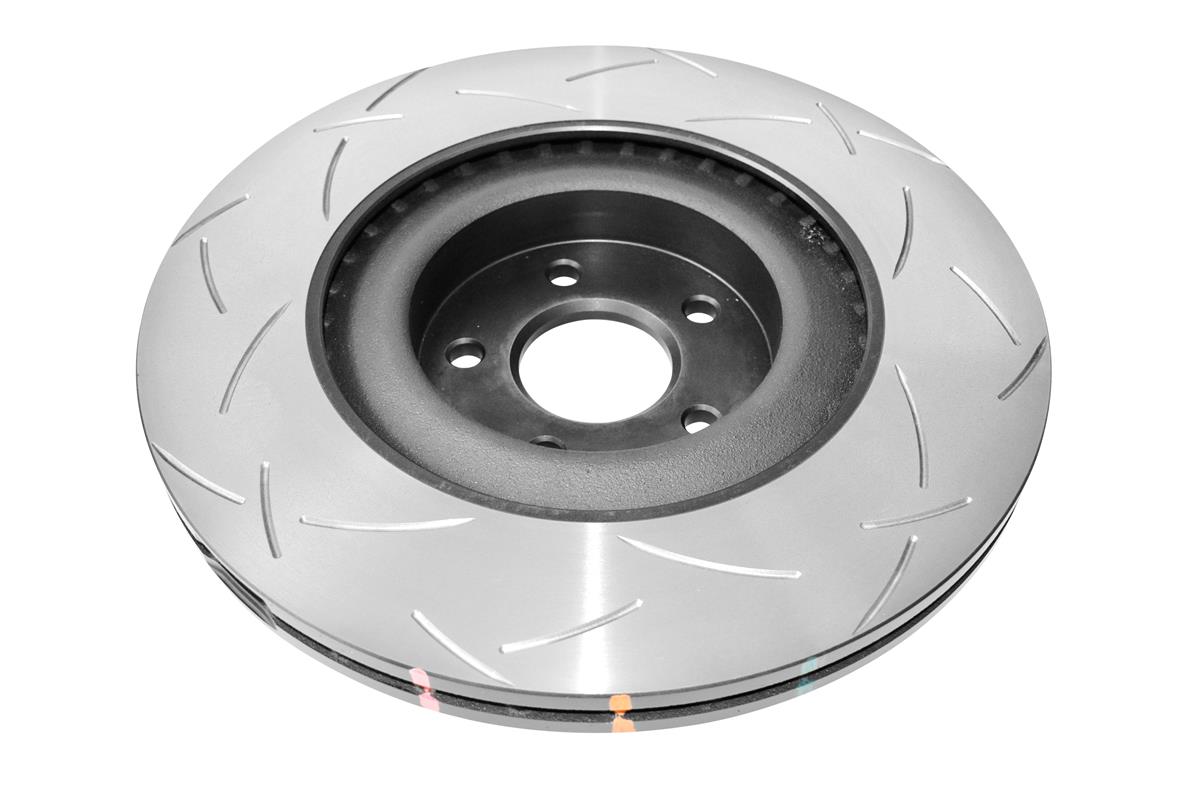

DBA42968S 4000 Series T3 brake disc for intensive road and performance driving.
DBA42968S belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.
The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.
Before purchase, confirm that DBA42968S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 350
- Disc Vent
- Kangaroo Paw
- Number of Holes
- 5
- Inner Diameter [mm]
- 63.5
- Minimum Thickness [mm]
- 23
- Thickness [mm]
- 25
- Height [mm]
- 49
- Pitch Circle [mm]
- 108
- Stage
- Stage 4
Applications
- Front - FORD/Focus (Mk3)/2.3 Turbo RS 350BHP (2016-2018) Brake Pads: DB15025, Brake Caliper: Brembo
