DBADBA 4000 Series brake discsDBA4622S

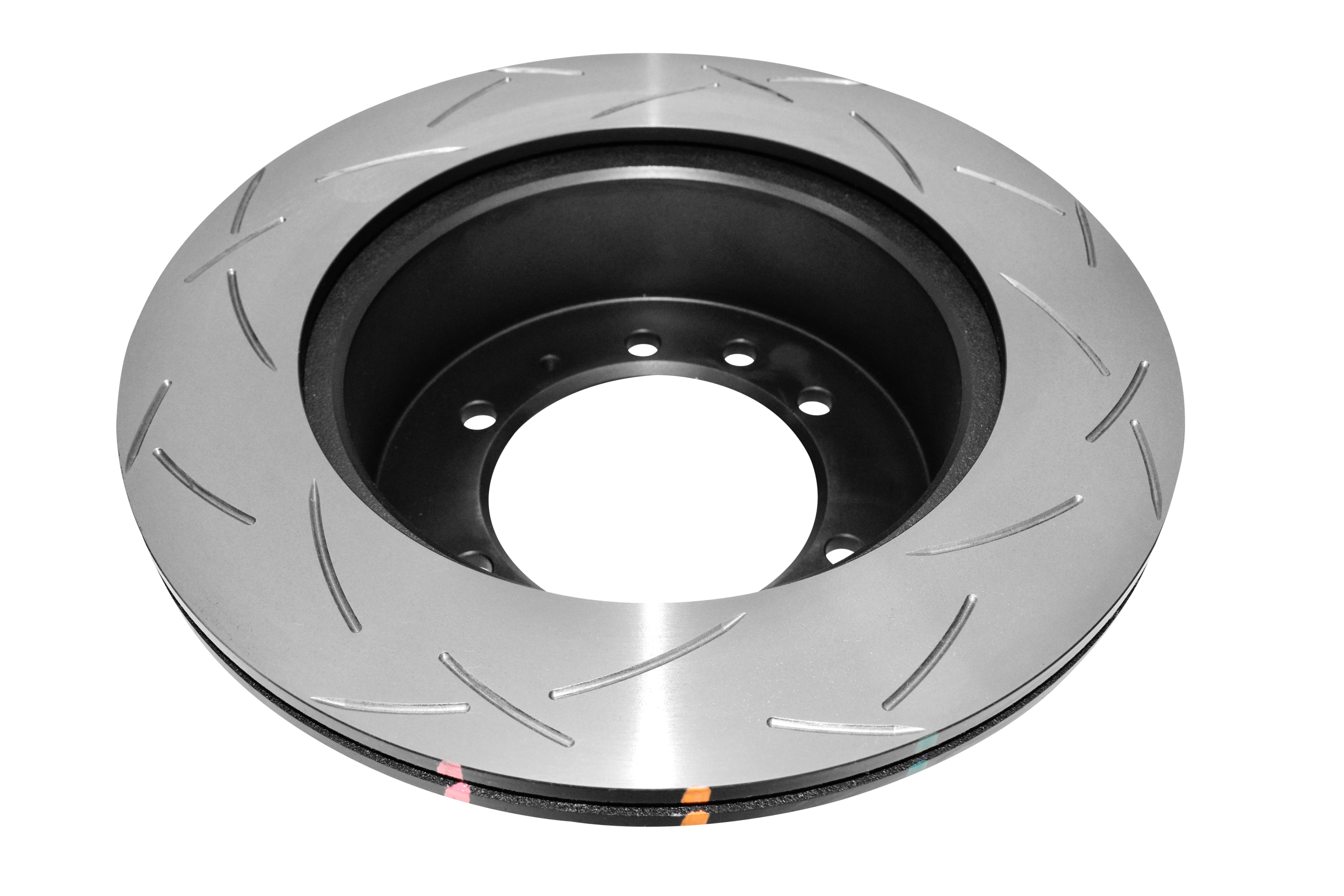

DBA4622S - DBA 4000 Series brake disc
Gross price
827,37 zł
Product available. Dispatch within 24 hours.
Product description
DBA4622S 4000 Series T3 brake disc for intensive road and performance driving.
DBA4622S belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.
The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.
Before purchase, confirm that DBA4622S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 315
- Disc Vent
- Kangaroo Paw
- Number of Holes
- 6
- Inner Diameter [mm]
- 111
- Minimum Thickness [mm]
- 16
- Thickness [mm]
- 18
- Height [mm]
- 80
- Pitch Circle [mm]
- 139.7
- Stage
- Stage 4
- ECE R90 number
- E11*90R02/06*60525*00
Applications
- Rear - NISSAN/Patrol Y60/2.8 TD (1992-1998) Brake Pads: DB1146,
- Rear - NISSAN/Patrol Y60/4.2 (1992-1998) Brake Pads: DB1146,
- Rear - NISSAN/Patrol Y60/4.2 TD (1993-1998) Brake Pads: DB1146,
- Rear - NISSAN/Patrol Y61/2.8 TD (1998-2001) Brake Pads: DB1148,
- Rear - NISSAN/Patrol Y61/3.0 TD (2000-2013) Brake Pads: DB1148,
- Rear - NISSAN/Patrol Y61/4.2 TD (1997-2013) Brake Pads: DB1148,
