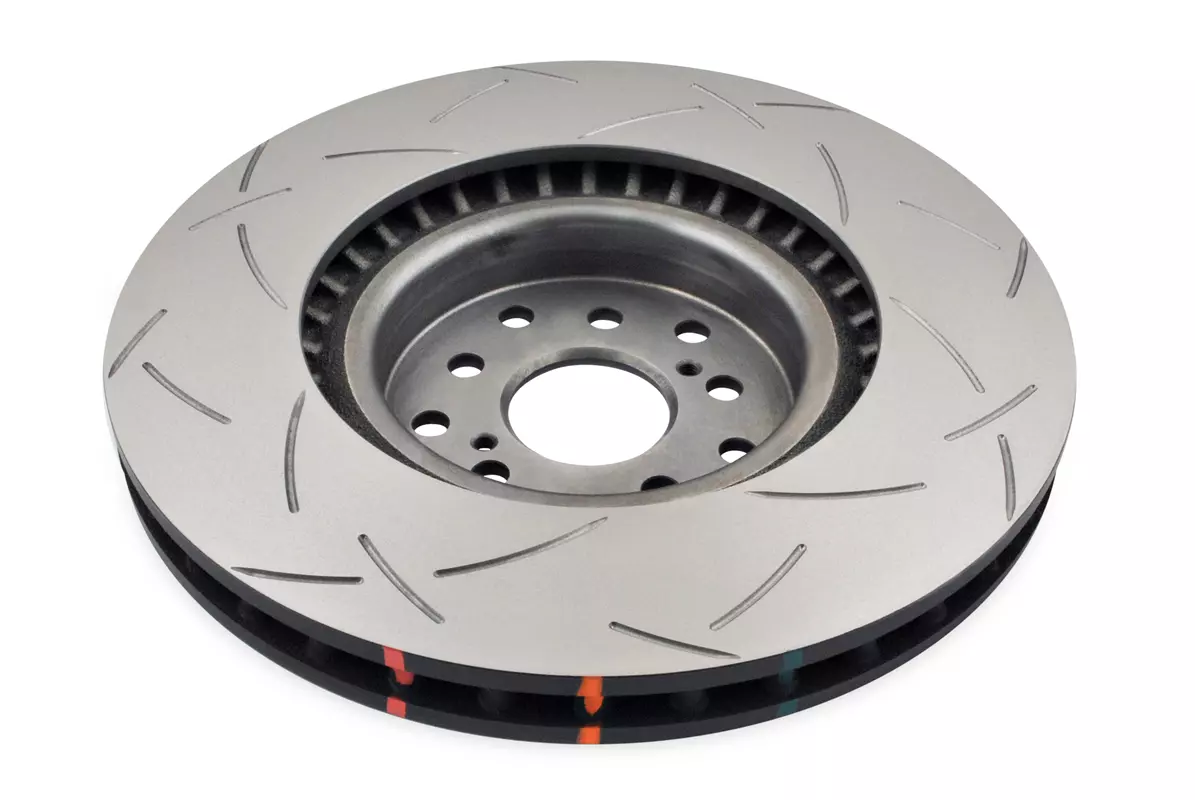

DBA4654S-10 - DBA 4000 Series brake disc

Product description

DBA4654S-10 4000 Series T3 brake disc for intensive road and performance driving.

DBA4654S-10 belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.

The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.

Before purchase, confirm that DBA4654S-10 matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Recommended for

Weekend Warriors, Motorsport

Diameter [mm]

326

Disc Vent

Kangaroo Paw

Number of Holes

10

Inner Diameter [mm]

58

Minimum Thickness [mm]

28

Thickness [mm]

30

Height [mm]

53

Pitch Circle [mm]

100 & 114.3

Stage

Stage 4

ECE R90 number

E11*90R02/06*60533*00

Applications
