DBADBA 4000 Series brake discsDBA4655-10
DBA4655-10 - DBA 4000 Series brake disc
Gross price
787,89 zł
Product available. Dispatch within 24 hours.
Product description

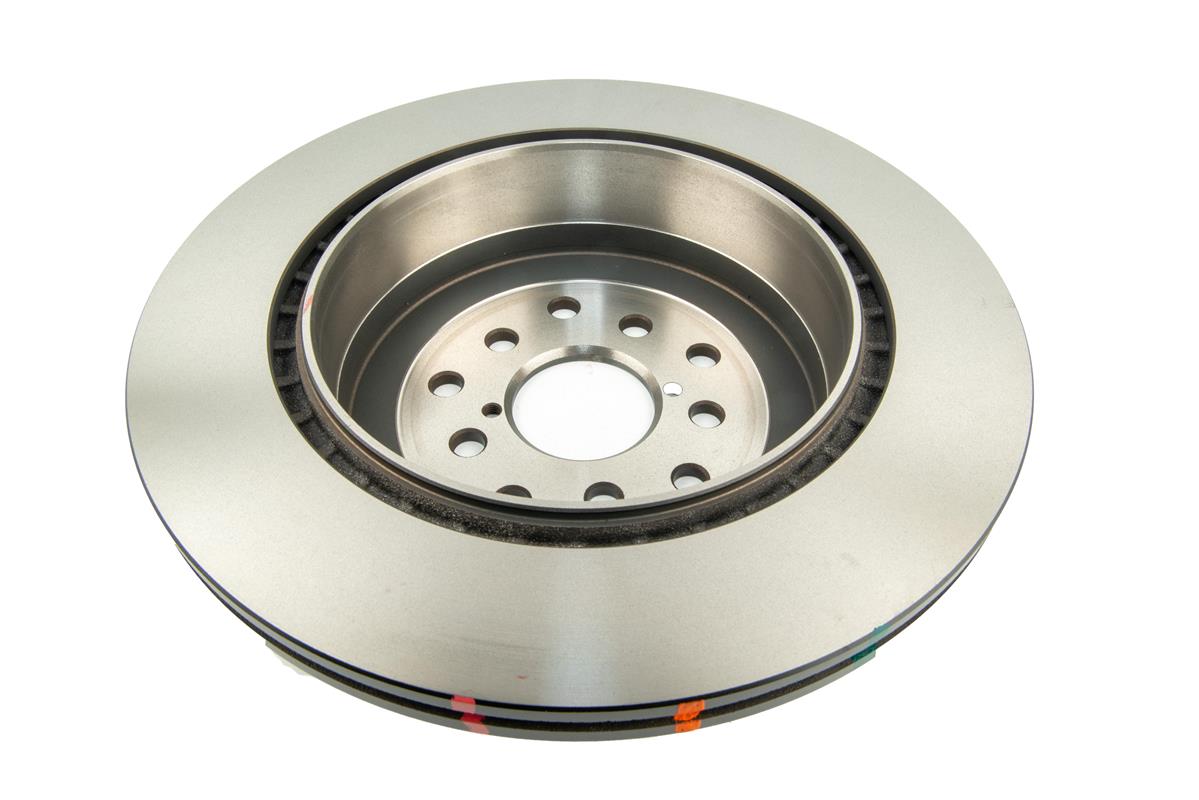

DBA4655-10 4000 Series brake disc with enhanced resistance to thermal loads.
DBA4655-10 belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.
The plain version provides a large friction area and stable operation during intensive road use. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.
Before purchase, confirm that DBA4655-10 matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 316
- Disc Vent
- Kangaroo Paw
- Number of Holes
- 10
- Inner Diameter [mm]
- 58
- Minimum Thickness [mm]
- 18
- Thickness [mm]
- 20
- Height [mm]
- 67.5
- Pitch Circle [mm]
- 100, 114.3
- ECE R90 number
- E11*90R02/06*59755*00
Applications
- Rear - SUBARU/Forester/2.5 Turbo STi 320BHP (2004-2008) Brake Pads: DB1521, Brake Caliper: Brembo
- Rear - SUBARU/Impreza/2.0 Turbo WRX STi 100 pcd (2002-2005) Brake Pads: DB1521, Brake Caliper: Brembo
- Rear - SUBARU/Impreza/2.0 Turbo WRX STi 114 pcd (2005-2006) Brake Pads: DB1521, Brake Caliper: Brembo
- Rear - SUBARU/Impreza/2.5 Turbo WRX STi (2006-2007) Brake Pads: DB1521, Brake Caliper: Brembo
- Rear - SUBARU/Impreza RB320/2.5 Turbo (2006-2007) Brake Pads: DB1521, Brake Caliper: Brembo
