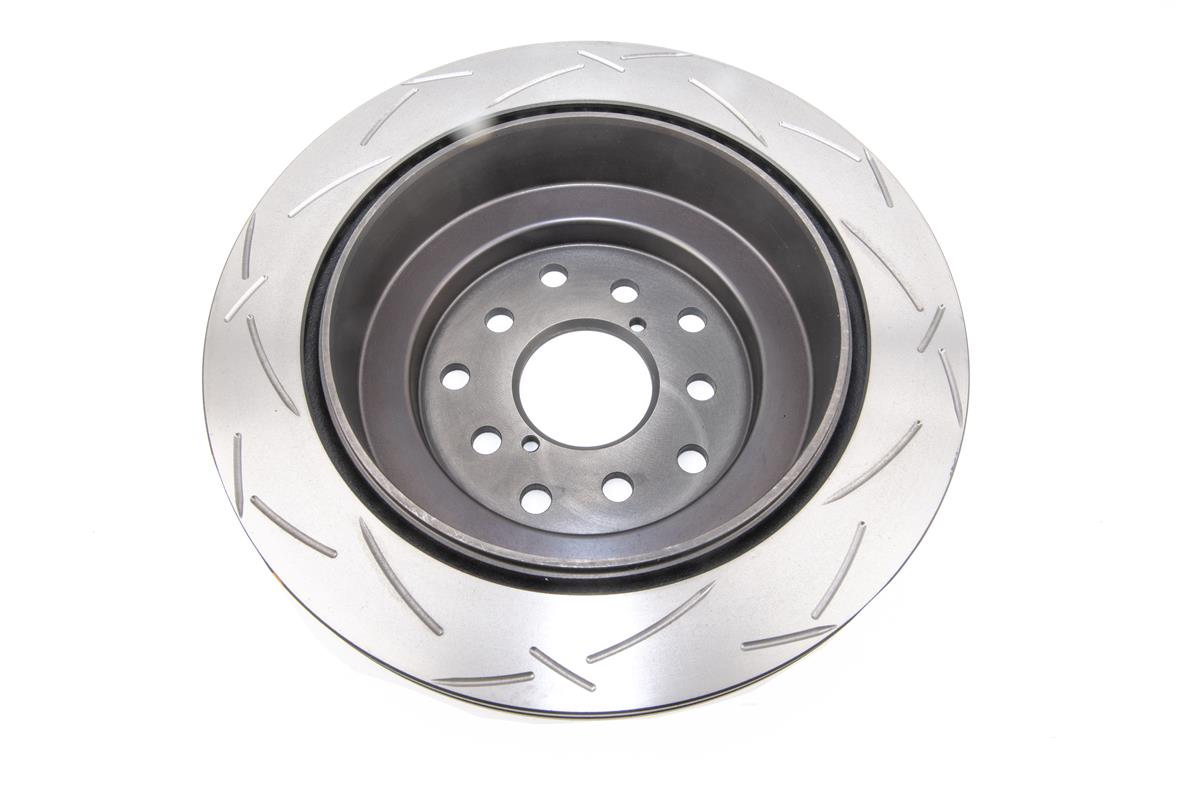

DBA4656S-10 - DBA 4000 Series brake disc
Available from supplier stock. We will confirm the lead time after receiving the order.
Product description
DBA4656S-10 4000 Series T3 brake disc for intensive road and performance driving.
DBA4656S-10 belongs to the 4000 Series for intensive road and performance use. This series is designed to operate at elevated temperatures.
The T3 system uses precision-machined, tri-symmetrical grooves. Their layout supports gas evacuation, reduces vibration and helps maintain consistent braking performance. Depending on the reference, DBA solutions supporting heat dissipation and disc temperature control are used.
Before purchase, confirm that DBA4656S-10 matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 290
- Disc Vent
- Kangaroo Paw
- Number of Holes
- 10
- Inner Diameter [mm]
- 58
- Minimum Thickness [mm]
- 16
- Thickness [mm]
- 18
- Height [mm]
- 67.5
- Pitch Circle [mm]
- 100
- Stage
- Stage 4
Applications
- Rear - SUBARU/Impreza/2.0 Turbo Import (1998-2002) Brake Pads: DB1220,
- Rear - SUBARU/Impreza/2.0 Turbo WRX Import 190mm handbrake shoes (2001-2005) Brake Pads: DB1220,
