DBADBA 5000 Series discs and replacement rotorsDBA52224.1V2S
DBA52224.1V2S - DBA 5000 Series brake disc or replacement rotor
Gross price
1 671,89 zł
Product available. Dispatch within 24 hours.
Product description

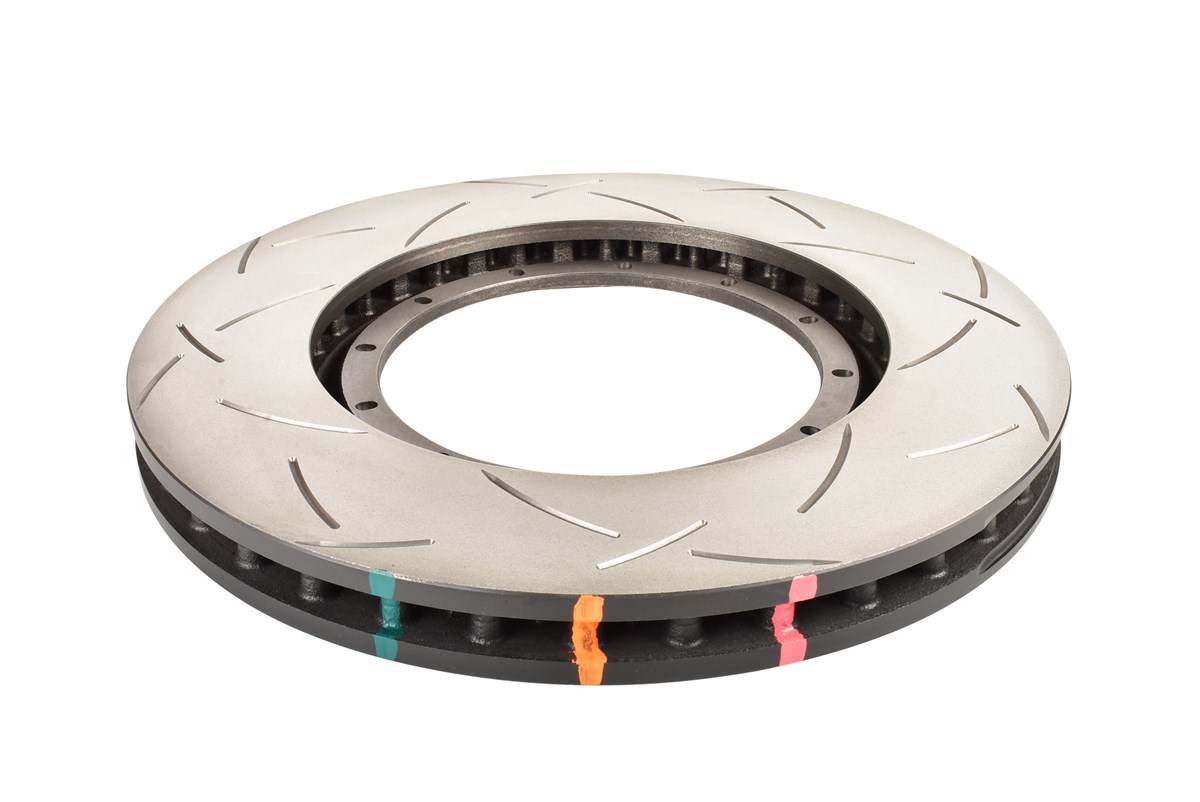

Replacement DBA52224.1V2S rotor for DBA 5000 Series two-piece braking systems.
DBA52224.1V2S belongs to the 5000 Series for braking systems operating under high loads.
This is a replacement rotor designed for use with the corresponding DBA bell. Check the installation side and compatibility of all system components.
Before purchase, confirm that DBA52224.1V2S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 350
- Thickness [mm]
- 32
- Disc Vent
- Kangaroo Paw
- Annulus [mm] (Maximum useable pad width)
- 65,25
- Pitch Circle Diameter (P.C.D.)
- 188
- Inside Diameter [mm]
- 219,5
- Diameter & Number of Bolt Holes [mm]
- 6.4 (x12)
- Air Gap [mm]
- 14,6
- Offset [mm]
- -6,35
- Flange Inside Diameter [mm]
- 170
- Flange Thickness [mm]
- 6,35
- Hole Type
- Elongated Hole
- Stage
- Stage 5
- Replacement Nuts
- Included
Applications
- Front - HONDA/Civic (10th Gen) FK8/2.0 Turbo Type-R 320BHP (2017-) , Brake Pads: DB1678
- Front - HONDA/Civic (9th Gen) FK2/2.0 Turbo Type-R 310BHP (2015-2017) , Brake Pads: DB1678
