DBADBA 5000 Series discs and replacement rotorsDBA52323.1S
DBA52323.1S - DBA 5000 Series brake disc or replacement rotor
Gross price
1 535,04 zł
Product available. Dispatch within 24 hours.
Product description

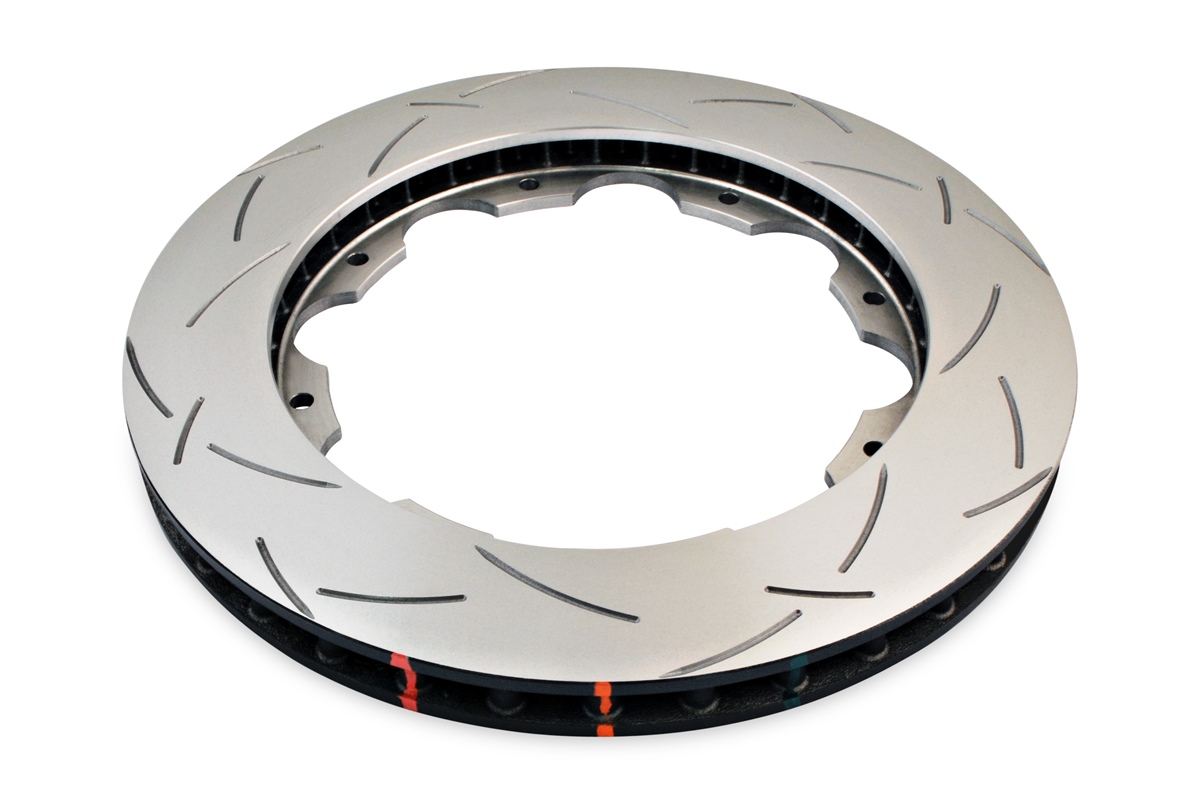

Replacement DBA52323.1S rotor for DBA 5000 Series two-piece braking systems.
DBA52323.1S belongs to the 5000 Series for braking systems operating under high loads.
This is a replacement rotor designed for use with the corresponding DBA bell. Check the installation side and compatibility of all system components.
Before purchase, confirm that DBA52323.1S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 380
- Thickness [mm]
- 30
- Disc Vent
- Kangaroo Paw
- Annulus [mm] (Maximum useable pad width)
- 58,3
- Pitch Circle Diameter (P.C.D.)
- 246,9
- Inside Diameter [mm]
- 264,5
- Diameter & Number of Bolt Holes [mm]
- 9.05 (x8)
- Air Gap [mm]
- 16
- Offset [mm]
- 0
- Flange Inside Diameter [mm]
- 222,9
- Flange Thickness [mm]
- 7
- Hole Type
- Round Hole
- Stage
- Stage 5
- Replacement Nuts
- Included
Applications
- Rear - NISSAN/GT-R (R35)/3.8 Twin Turbo 485BHP (2008-2011) , Brake Caliper: Brembo
- Rear - NISSAN/GT-R (R35)/3.8 Twin Turbo 523BHP (2011-2012) , Brake Caliper: Brembo
- Rear - NISSAN/GT-R (R35)/3.8 Twin Turbo 542BHP (2012-2016) , Brake Caliper: Brembo
- Rear - NISSAN/GT-R (R35)/3.8 Twin Turbo 570BHP (2016-) , Brake Caliper: Brembo
