DBA52842.1S - DBA 5000 Series brake disc or replacement rotor

Product description

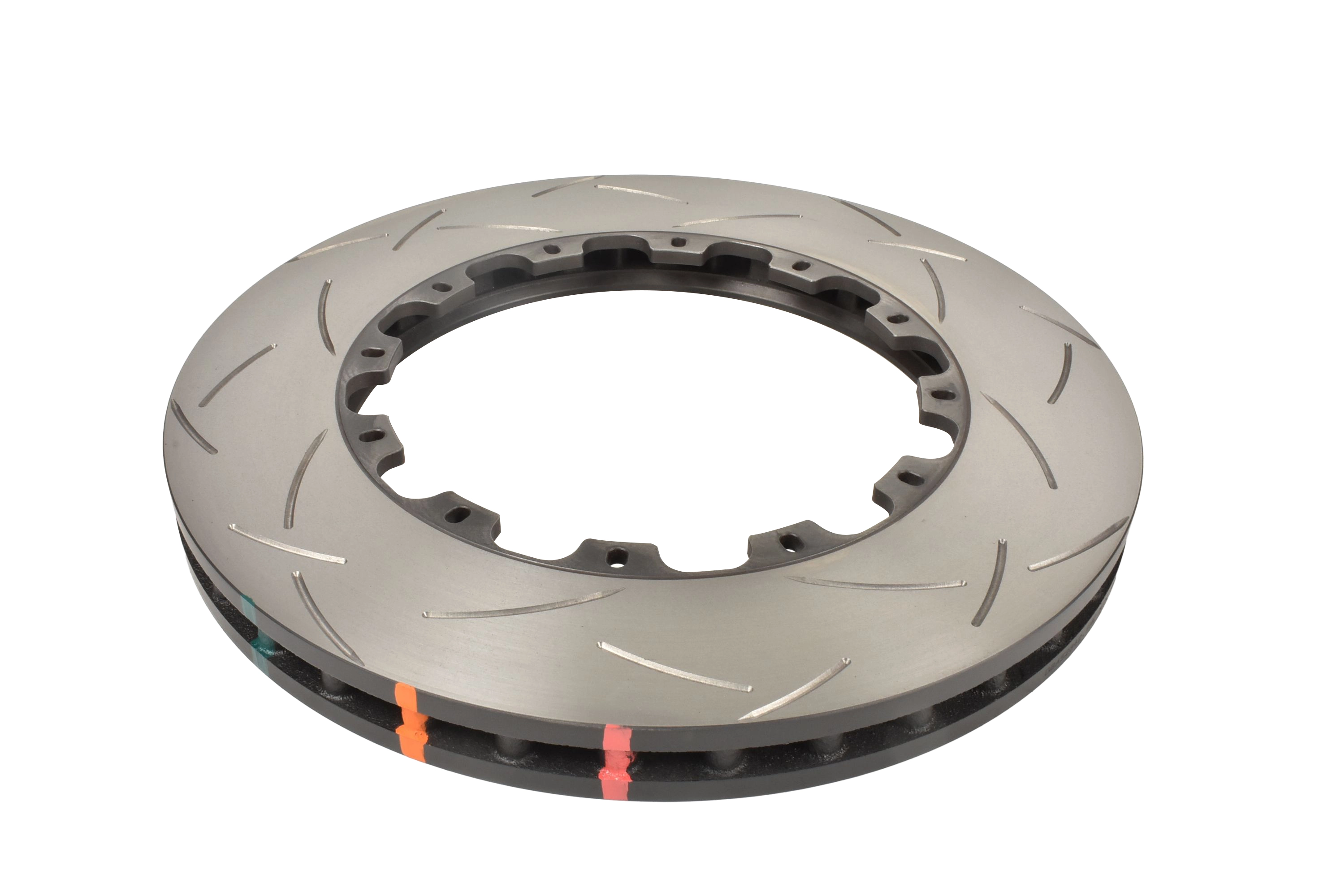

Replacement DBA52842.1S rotor for DBA 5000 Series two-piece braking systems.

DBA52842.1S belongs to the 5000 Series for braking systems operating under high loads.

This is a replacement rotor designed for use with the corresponding DBA bell. Check the installation side and compatibility of all system components.

Before purchase, confirm that DBA52842.1S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.

Technical data

Diameter [mm]

370

Thickness [mm]

32

Disc Vent

Kangaroo Paw

Annulus [mm] (Maximum useable pad width)

63,25

Pitch Circle Diameter (P.C.D.)

223,5

Inside Diameter [mm]

243,5

Diameter & Number of Bolt Holes [mm]

6.4(x12)

Air Gap [mm]

13

Offset [mm]

0

Flange Inside Diameter [mm]

206

Flange Thickness [mm]

7

Hole Type

Elongated Hole

Stage

Stage 5

Replacement Nuts

Included
