DBADBA 5000 Series discs and replacement rotorsDBA52910.1S

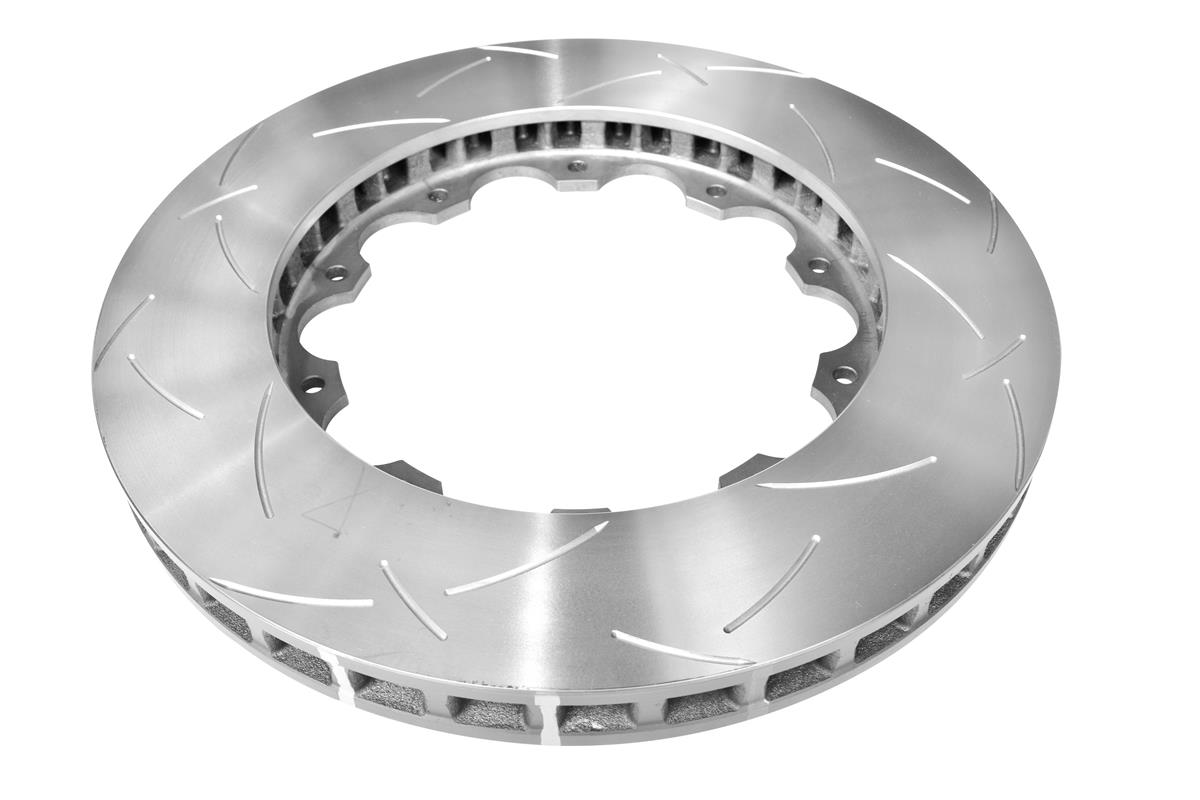

DBA52910.1S - DBA 5000 Series brake disc or replacement rotor
Gross price
1 744,36 zł
Product available. Dispatch within 24 hours.
Product description
Replacement DBA52910.1S rotor for DBA 5000 Series two-piece braking systems.
DBA52910.1S belongs to the 5000 Series for braking systems operating under high loads.
This is a replacement rotor designed for use with the corresponding DBA bell. Check the installation side and compatibility of all system components.
Before purchase, confirm that DBA52910.1S matches the vehicle, brake-system version and installation axle. If in doubt, we can identify the correct part using the VIN.
Technical data
- Diameter [mm]
- 390
- Thickness [mm]
- 34
- Disc Vent
- Kangaroo Paw
- Annulus [mm] (Maximum useable pad width)
- 69
- Pitch Circle Diameter (P.C.D.)
- 229
- Inside Diameter [mm]
- 251,7
- Diameter & Number of Bolt Holes [mm]
- 9 (x10)
- Air Gap [mm]
- 17
- Offset [mm]
- 0
- Flange Inside Diameter [mm]
- 205
- Flange Thickness [mm]
- 7
- Hole Type
- Round Hole
- Stage
- Stage 5
- Replacement Nuts
- Included
Applications
- Front - DODGE/Challenger/6.4 (2015-) Brake Pads: DB2375, Brake Caliper: Brembo
- Front - DODGE/Challenger SRT Hellcat/6.2 Supercharged (2015-) Brake Pads: DB2375, Brake Caliper: Brembo
- Front - DODGE/Charger SRT 395/6.4 (2015-) Brake Pads: DB2375, Brake Caliper: Brembo
- Front - DODGE/Charger SRT Hellcat/6.2 Supercharged (2015-) Brake Pads: DB2375, Brake Caliper: Brembo
